M-40 1 Deep 2 High (SPECIAL ORDER) M-40 1 Deep 2 High (SPECIAL ORDER)

M-40 1 Deep 2 High (SPECIAL ORDER)

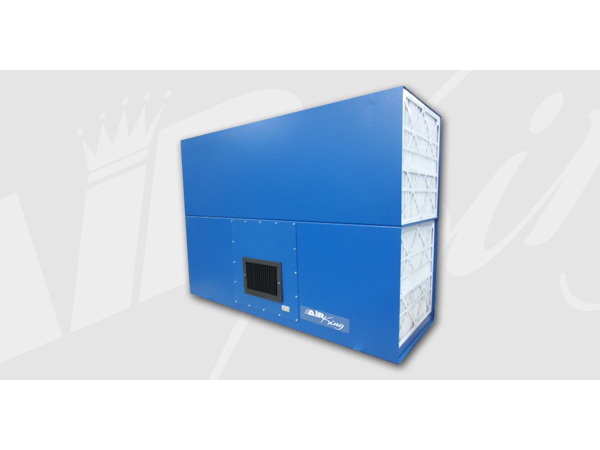

The M-40 series units are the 2 & 3HP, 3-phase, multi-cabinet option of our M-30C series. Offering increased filter surface area which decreases the frequency of filter changes required, these units in turn reduce your ongoing maintenance costs. These units can be configured in a number of ways, both vertically and horizontally, to best suit your specific needs.

The M-40V features (4) four inch pleated, Merv 8, industrial pre-filters which catch the larger particles, extending the life of the (4) second stage, Merv 11 or optional Merv 15, multi-pocket bag filters. Our disposable filters are easy to service and provide for simple, low-cost maintenance.

This Item will take 4-5 weeks for delivery after purchase

Specifications M-40V
Dimensions 24''W x 50''T x 72''L
Weight 385 lbs
Volume (CFM) 4000 CFM
Pre-Filter (4) 24''x24''x4'' Pleated
Primary Filter (4) 65%, 21'' 8 Pocket Bags (236 sq ft)
Motor 2HP TEFC; 208-230/460/3/60; 6.0-5.8/2.9 amps, 3 phase
Blower 11 x 8 Belt Drive, Single Speed
Paint 16 Gauge; River Blue chemical resistant powder coating
Noise Level 72 dBA
Application General


Filter Change Gauge: Magnehelic

Pressure Gauge 0-2" W.C.
