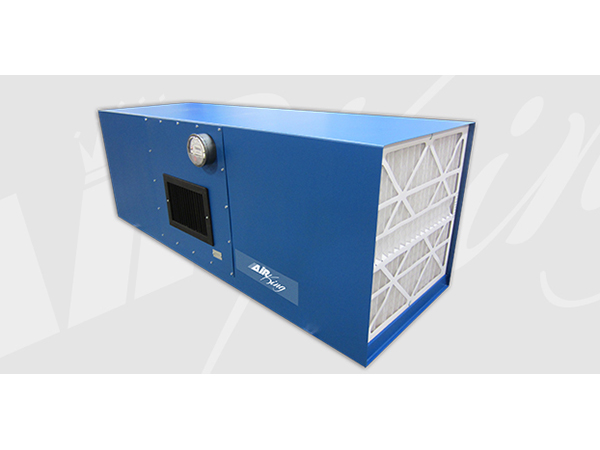

M-30 C Standard (SPECIAL ORDER) M-30 C Standard (SPECIAL ORDER)

M-30 C Standard (SPECIAL ORDER)

The M-30C Standard features (2) four inch pleated, Merv 8, industrial pre-filters which catch the larger particles, extending the life of the (2) second stage, Merv 11 or optional Merv 15, multi-pocket bag filters. Our disposable filters are easy to service and provide for simple, low-cost maintenance.

This Item will take 4-5 weeks for delivery after purchase

Specifications M-30C
Dimensions 24''W x 26''T x 72''L
Weight 280 lbs
Volume (CFM) 3500 CFM
Pre-Filter (2) 24''x24''x4'' Pleated
Primary Filter (2) 65%, 21'' 8 Pocket Bags (118 sq ft)
Motor 2HP TEFC; 208-230/460/3/60; 6.0-5.8/2.9 amps 3 phase
Blower 11 x 8 Belt Drive, Single Speed
Paint 16 Gauge; River Blue chemical resistant powder coating
Noise Level 72 dBA
Application General


Filter Change Gauge: Magnehelic

Pressure Gauge 0-2" W.C.
