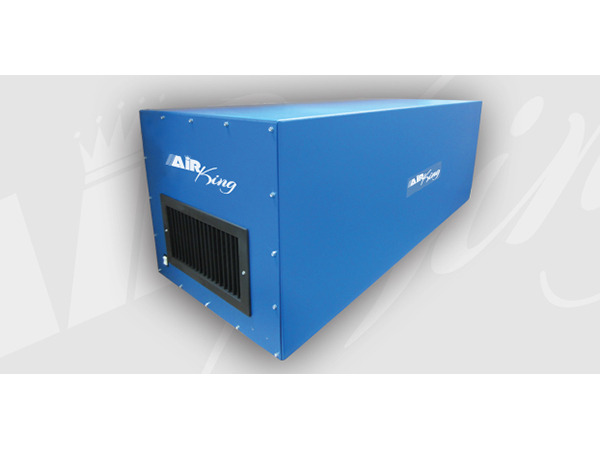

M-25 Standard M-25 Standard

M-25 Standard

The M-25 Standard features a four inch pleated, Merv 8, industrial pre-filter which catches the larger particles, extending the life of the second stage, Merv 11 or optional Merv 15, multi-pocket bag filter. Our disposable filters are easy to service and provide for simple, low-cost maintenance.

Specifications M-25
Dimensions 24''W x 24''T x 59''L
Weight 150 lbs
Volume (CFM) 2500 CFM
Pre-Filter (1) 24''x24''x4'' Pleated
Primary Filter (1) 65%, 36” 8 Pocket Bag (96 sq ft)
Motor 3/4 HP PSC; 115/1/60; 10.2 amps
Blower 10 x 10 Direct Drive, 2 speed
Paint 16 Gauge; River Blue chemical resistant powder coating
Noise Level 62 dBA
Application General


Filter Change Gauge: Magnehelic

Pressure Gauge 0-2" W.C.
