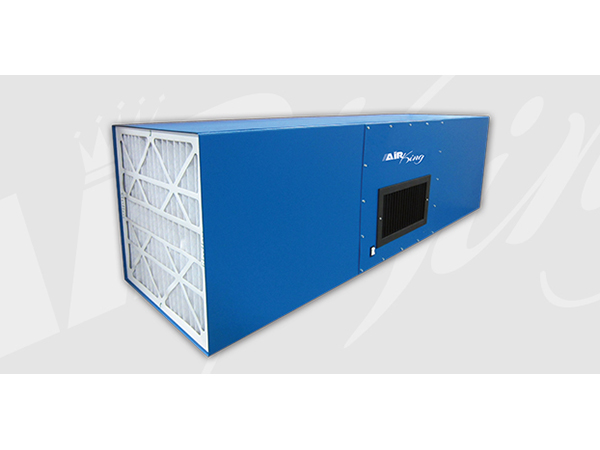

M-30 Standard M-30 Standard

M-30 Standard


The M-30 Standard features (2) four inch pleated, Merv 8, industrial pre-filters which catch the larger particles, extending the life of the (2) second stage, Merv 11 or optional Merv 15, multi-pocket bag filters. Our disposable filters are easy to service and provide for simple, low-cost maintenance.


Specifications M-30
Dimensions 24"WX24"TX72"L
Weight 180lbs
Volume (CFM) 3000 CFM
Pre-Filter (2) 24"X24"X4" Pleated
Primary Filter (2) 65%, 21"8 Pocket Bags (118 sq ft)
Motor 3/4 HP PSC; 115/1/60; 10.2 amps
Blower 10X10 Direct Drive, 2 Speed
Paint 16 Guage; River Blue chemical resistant powder coating
Noise Level 62 dBA
Application General

$1530




Filter Change Gauge: Magnehelic

Pressure Gauge 0-2" W.C.
SKU:BOP-MAG02

$132.00
